3D Printer Rear Vertical Plate Injection Mould PC

Name	3D Printer Rear Vertical Plate Mould PC
Material	PC(Shrinkage:0.5%)
Product Size	35742177㎜
Cavities Material	718H
Cold Runner/Hot Runner	Hot Runner Needle Valve Into Glue
Mould size	750750656㎜
Mould Weight	2800㎏
Type Of Injection Moulding Machine	HaiTian 650T
Production Status	Already In Production
Mould Completion Time	60Days

Contact now

PRODUCT DESCRIPTION

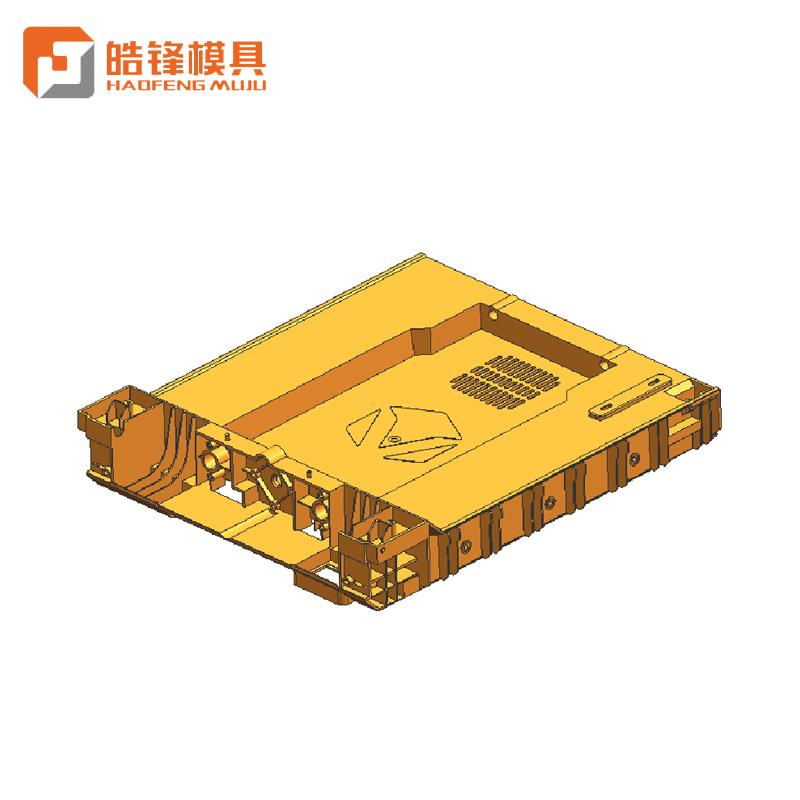

Product function:The rear stand plate of 3D printer needs to be assembled with other products of 3D printer.

Mould for rear vertical plate:

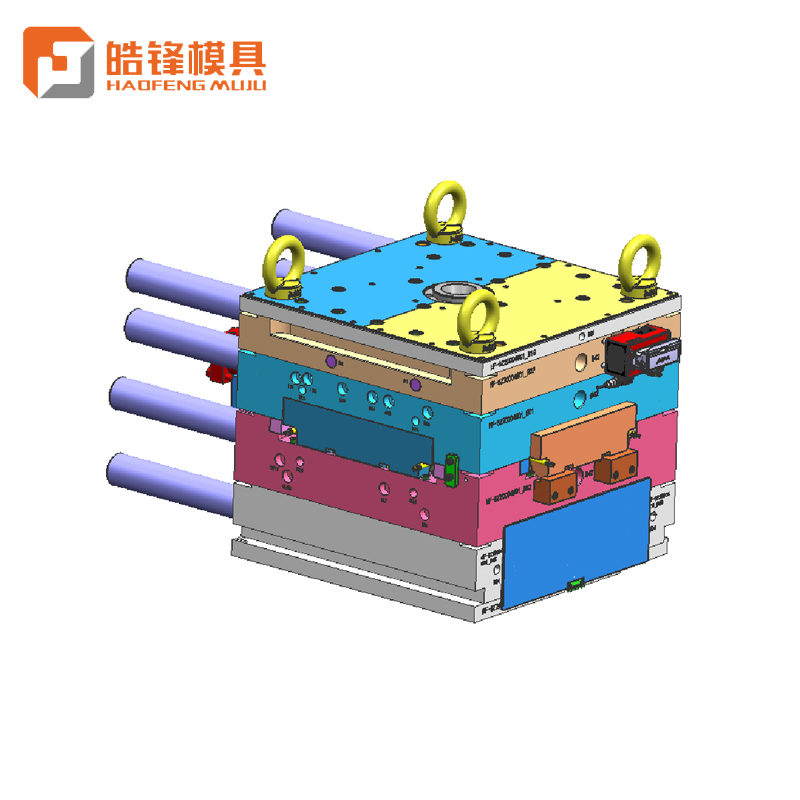

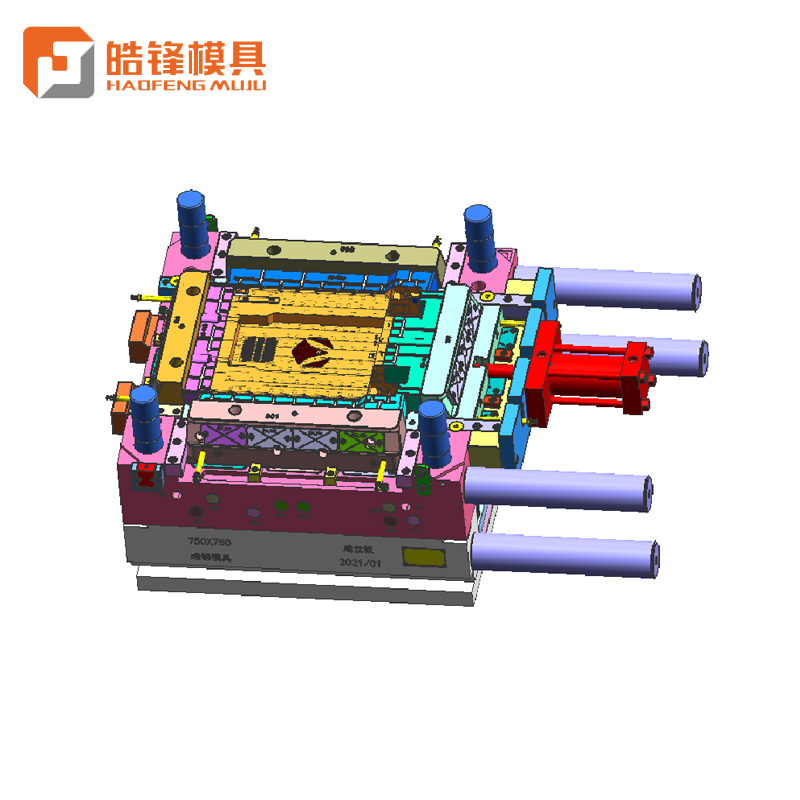

1: The mould structure of the rear vertical plate of 3-D printer has 4 sliders and 1 inclined top.

2: The average wall thickness of the product is 2.0. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause uneven parts and affect the manufacturing accuracy.

3: The average wall thickness of the reinforcing bars is 1.0. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause the top bars of the parts to be too thin and cause the product to lack glue.

4: In the mould design of the product parting surface, try to ensure the appearance quality of the product. The parting surface is set on the invisible side, so as not to affect the processing error or the flash edge of the mould production after long-term production.
