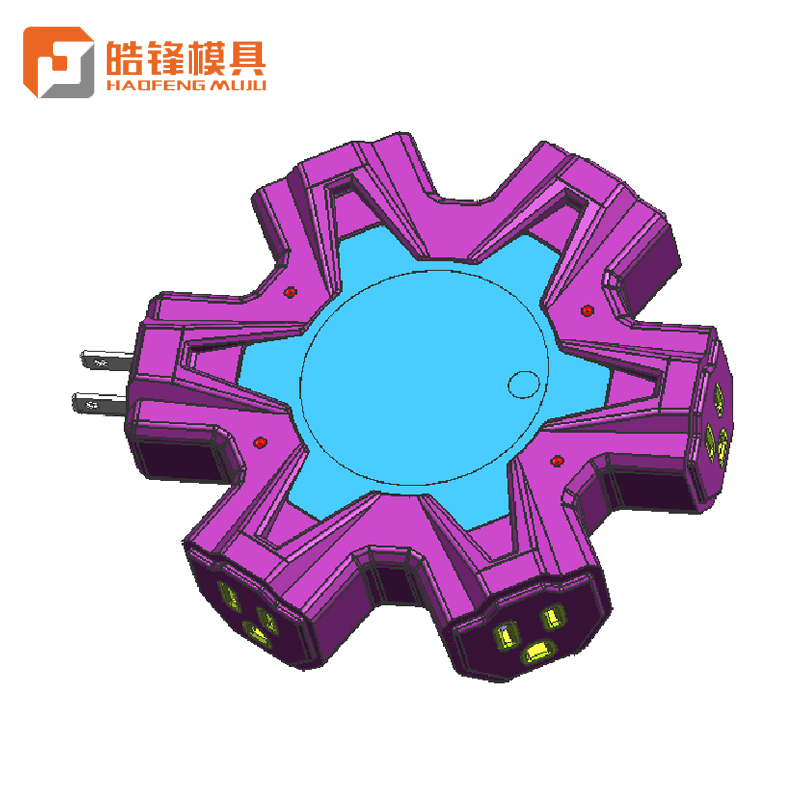

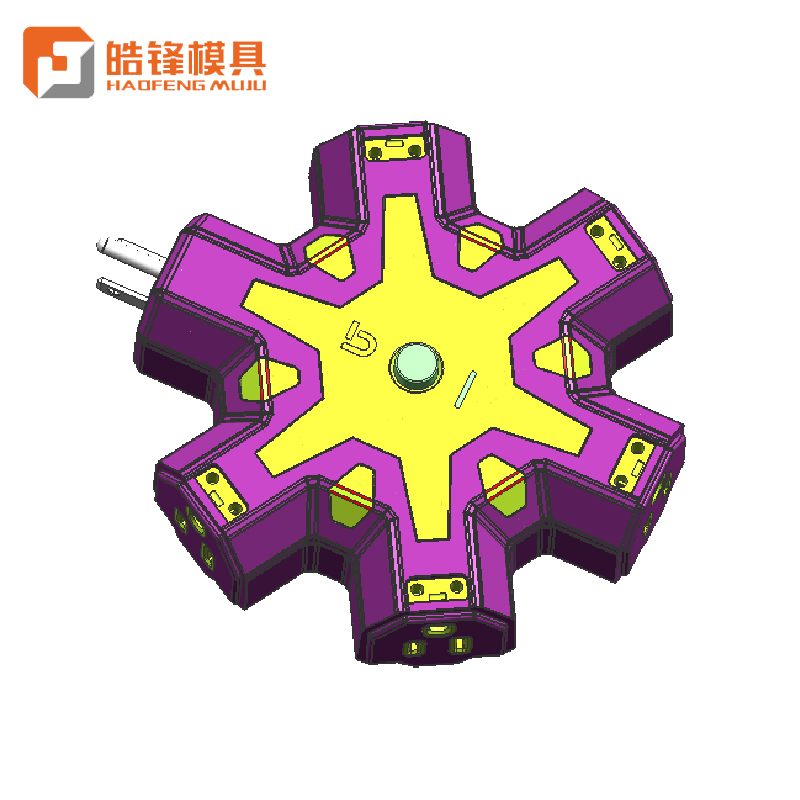

American Socket Wrapping Injection Mould

Name	American Socket Wrapping Mould
Material	PVC Soft Rubber
Product Size	14914540㎜
Cavities Material	S136
Cold Runner/Hot Runner	Three Board Die Point Into The Glue
Mould size	300350341㎜
Mould Weight	200㎏
Type Of Injection Moulding Machine	HaiTian 80T
Production Status	Already In Production
Mould Completion Time	40Days

Contact now

PRODUCT DESCRIPTION

Product function:American type plastic socket, can protect the parts inside, prevent children from easy disassembly.

American socket wrapping mould:

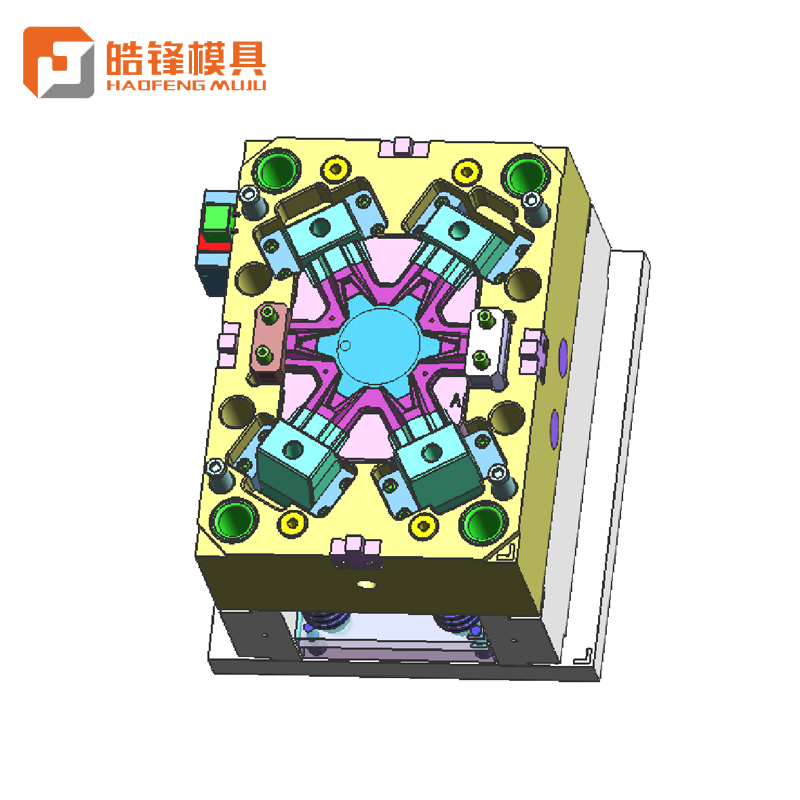

1: The structure of the American socket plastic wrap mould has a total of 4 sliders and 2 throwing blocks.

2: The average wall thickness of the product is 2.0. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause uneven parts and affect the manufacturing accuracy.

3: In the mould design of the product parting surface, try to ensure the appearance quality of the product. The parting surface is set on the invisible side, so as not to affect the processing error or the flash edge of the mould production after long-term production.

ABOUT US

CIXI HAOFENG MOULD TECHNOLOGY CO., LTD.

Cixi Haofeng Mould Technology Co., Ltd. is China American Socket Wrapping Injection Mould suppliers and OEM/ODM American Socket Wrapping Injection Mould factory, we offer custom American Socket Wrapping Injection Mould for sale at wholesale price. And we are professional mould manufacturing, product development, injection moulding processing and semi-finished product assembly in one of the integrated enterprises. Company formerly known as cixi zte mould factory was founded in 1996,Cixi Haofeng electrical appliance factory, established in 2010, established in 2017, Cixi Haofeng Mould Technology Co., Ltd. the company covers an area of more than 16000 square meters, has all kinds of technical personnel more than 50 people, complete production equipment, advanced production technology, scientific management system, perfect detection means are our company production of strong technical force. We have rich experience, we can create injection molds and mass-produce products for you according to the drawings or samples provided by customers.

Custom Process

1.Drawings or Samples:We get the drawings or samples from customers.

2.Drawings Confirmation:We will draw the 3D drawings according to the customers' 2D drawings or samples,and send the 3D drawings to customers for confirmation.

3.Quotation:We will quote after getting the customers' confirmation,or quote directly according to customers' 3D drawings.

4.Making Moulds/Patterns:We will make moulds or pattens after getting the mould orders from the customers.

Custom Process

5.Making Samples:We will make real samples using the moulds and send to customers for confirmation.

6.Mass Producing:We will produce the products after getting the customers' confirmation and orders.

7.Inspection:We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.

8.Shipment:We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
