Cold Runner Le Grande French Lower Cover Injection Mould

Name	Cold Runner Le Grande French Lower Cover Mould
Material	PP(Shrinkage:1.4%)
Product Size	420.6758.0038.70㎜
Cavities Material	8402
Cold Runner/Hot Runner	The Cold Runner Hides The Glue
Mould size	450700451㎜
Mould Weight	930㎏
Type Of Injection Molding Machine	HaiTian MA3800/2250
Production Status	Already In Production
Mould Completion Time	60Days

Contact now

PRODUCT DESCRIPTION

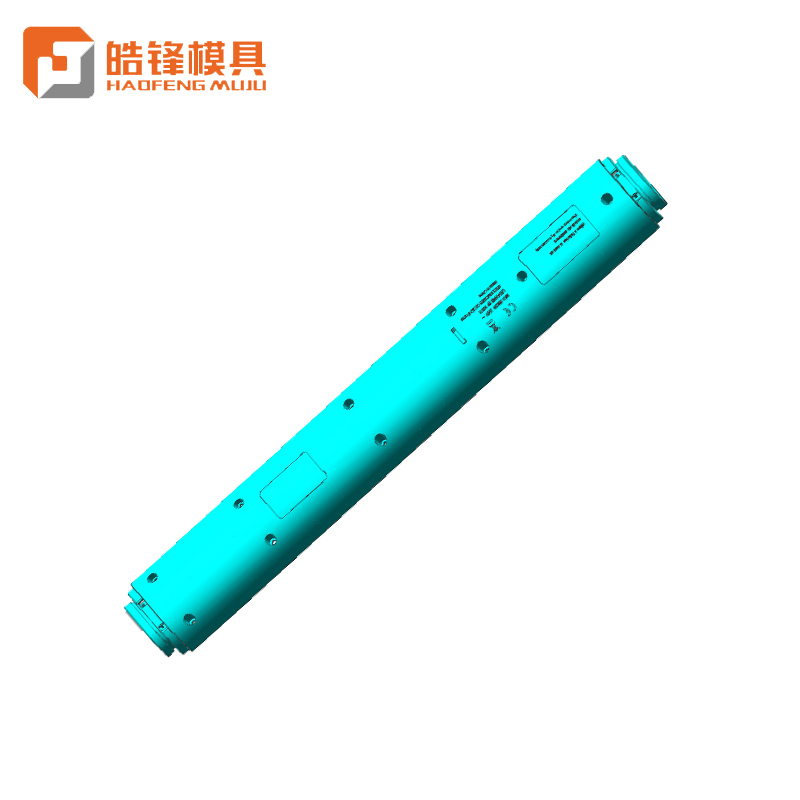

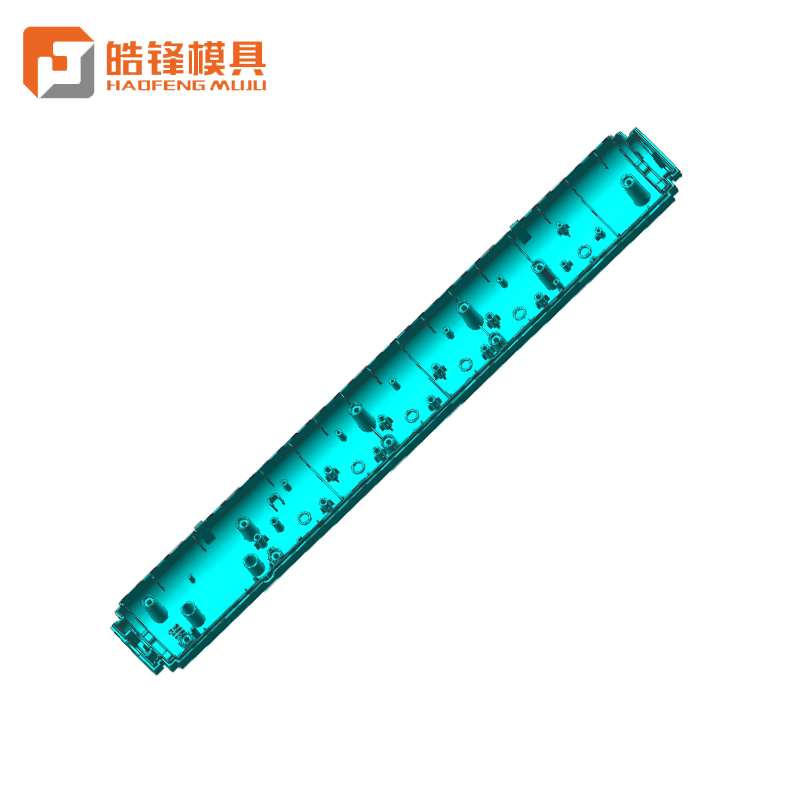

Product function:The Le Grande French lower cover is the equipment part of the Le Grande French socket. The Le Grande socket lower cover needs to be assembled with the upper/middle cover and other products.

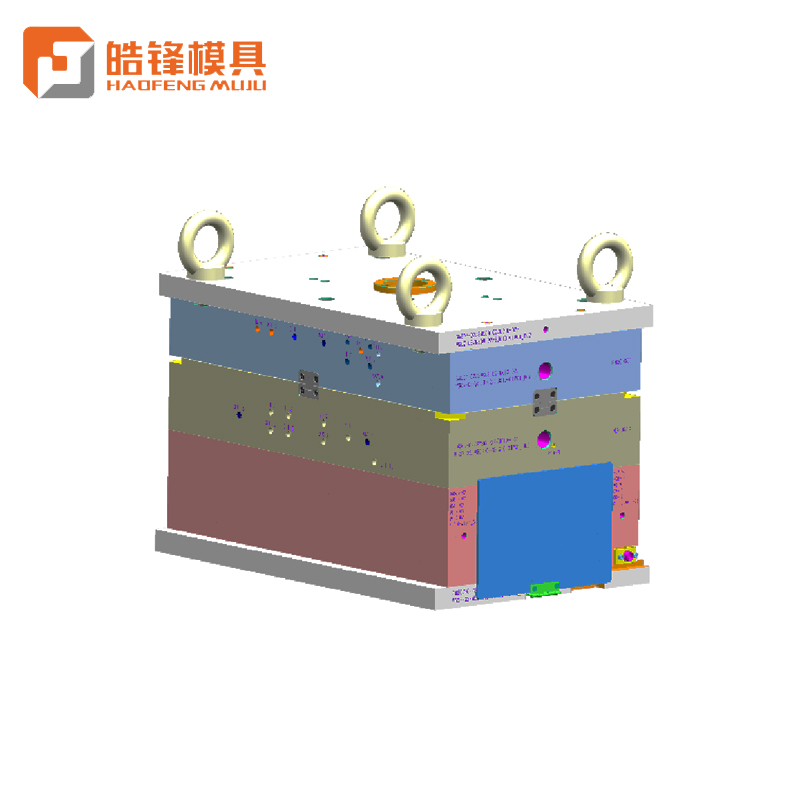

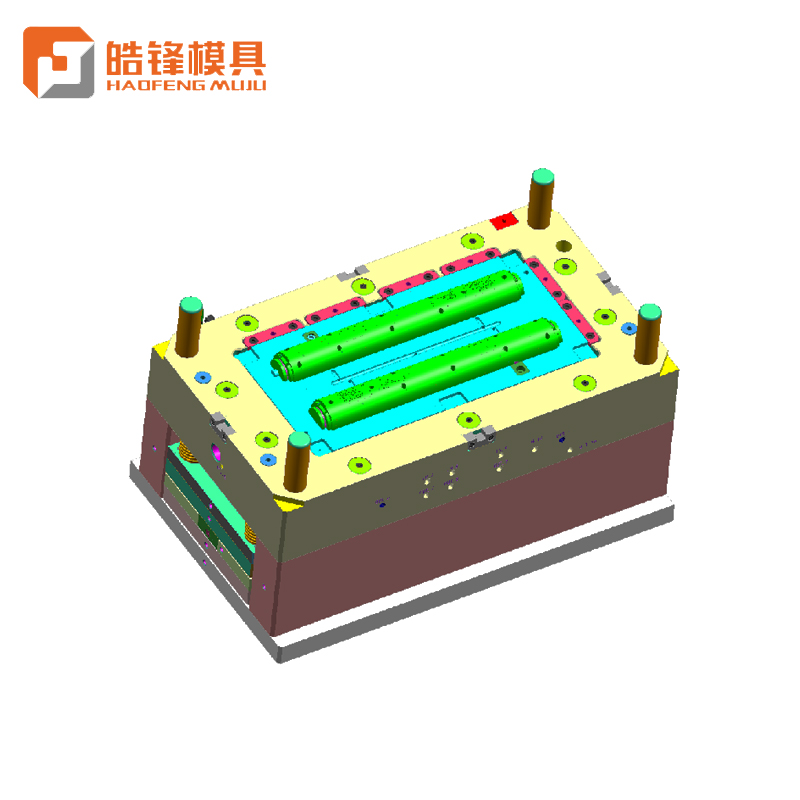

Cold runner Le Grande French lower cover mould:

1: Two sets of roof of Le Grande French lower cover mould structure, which can adjust the roof to produce German and French lower covers.

2: The average wall thickness of the product is 1.8mm. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause uneven parts and affect the manufacturing accuracy.

3: The average wall thickness of the reinforcing bars is 0.8. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause the top bars of the parts to be too thin and cause the product to lack glue.

4: In the mould design of the product parting surface, try to ensure the appearance quality of the product. The parting surface is set on the invisible side, so as not to affect the processing error or the flash edge of the mould production after long-term production.

ABOUT US

CIXI HAOFENG MOULD TECHNOLOGY CO., LTD.

Cixi Haofeng Mould Technology Co., Ltd. is China Cold Runner Le Grande French Lower Cover Injection Mould suppliers and OEM/ODM Cold Runner Le Grande French Lower Cover Injection Mould factory, we offer custom Cold Runner Le Grande French Lower Cover Injection Mould for sale at wholesale price. And we are professional mould manufacturing, product development, injection moulding processing and semi-finished product assembly in one of the integrated enterprises. Company formerly known as cixi zte mould factory was founded in 1996,Cixi Haofeng electrical appliance factory, established in 2010, established in 2017, Cixi Haofeng Mould Technology Co., Ltd. the company covers an area of more than 16000 square meters, has all kinds of technical personnel more than 50 people, complete production equipment, advanced production technology, scientific management system, perfect detection means are our company production of strong technical force. We have rich experience, we can create injection molds and mass-produce products for you according to the drawings or samples provided by customers.

Custom Process

1.Drawings or Samples:We get the drawings or samples from customers.

2.Drawings Confirmation:We will draw the 3D drawings according to the customers' 2D drawings or samples,and send the 3D drawings to customers for confirmation.

3.Quotation:We will quote after getting the customers' confirmation,or quote directly according to customers' 3D drawings.

4.Making Moulds/Patterns:We will make moulds or pattens after getting the mould orders from the customers.

Custom Process

5.Making Samples:We will make real samples using the moulds and send to customers for confirmation.

6.Mass Producing:We will produce the products after getting the customers' confirmation and orders.

7.Inspection:We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.

8.Shipment:We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
