Cold Runner LeGrande French 6 Hole With SPD Injection Mould

Name	Cold Runner LeGrande French 6 Hole With SPD Mould
Material	PP(Shrinkage:1.3%)
Product Size	420.6758.0045.48㎜
Cavities Material	8402
Cold Runner/Hot Runner	The Cold Runner Hides The Glue
Mould size	450700411㎜
Mould Weight	885㎏
Type Of Injection Molding Machine	HaiTian MA3800/2250
Production Status	Already In Production
Mold Completion Time	60Days

Contact now

PRODUCT DESCRIPTION

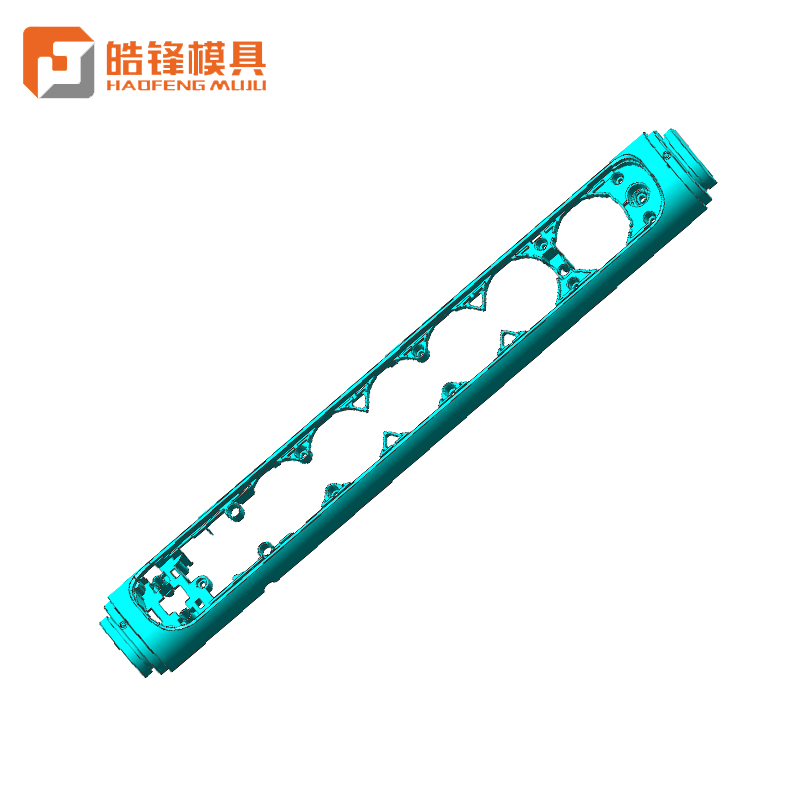

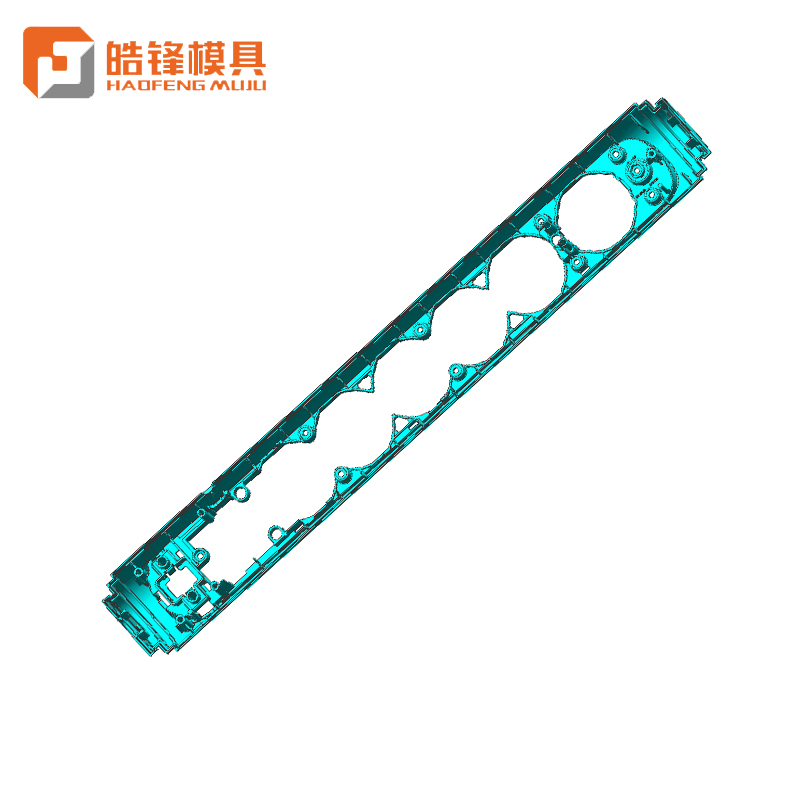

Product function:The cold runner LeGrande French 6-hole SPD is a part of the LeGrande socket cover equipment. The LeGrande socket cover needs to be assembled with the upper/lower cover and other products.

Cold flow Dougren French 6 hole with SPD mould:

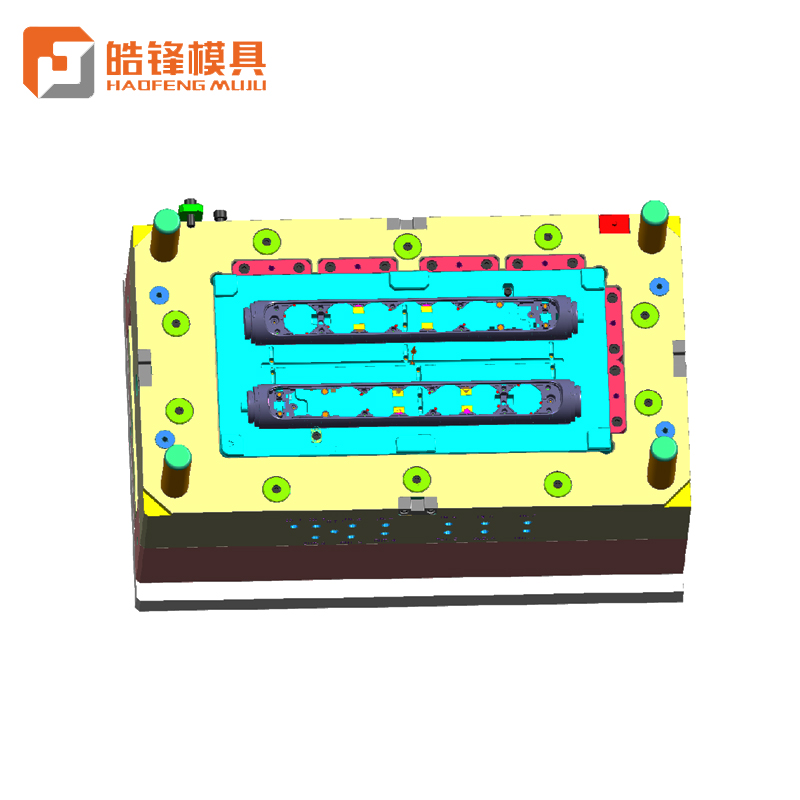

1: Glen French 6 holes with SPD mold structure under the floating inserts, feed latent and then latent, to ensure that the opposite side of the injection molding feed uniform.

2: The average wall thickness of the product is 1.8mm. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause uneven parts and affect the manufacturing accuracy.

3: The average wall thickness of the reinforcing bars is 1.0mm. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause the top bars of the parts to be too thin and cause the product to lack glue.

4: In the mould design of the product parting surface, try to ensure the appearance quality of the product. The parting surface is set on the invisible side, so as not to affect the processing error or the flash edge of the mould production after long-term production.
