GB Socket Cover Injection Mould

Name	GB Socket Cover Mould
Material	PP(Shrinkage:0.15%)
Product Size	7424728㎜
Cavities Material	8402
Cold Runner/Hot Runner	Inverted Hot Runner Needle valve Into Glue
Mould size	400450550㎜
Mould Weight	750㎏
Type Of Injection Molding Machine	HaiTian 250T
Production Status	Already In Production
Mould Completion Time	40Days

Contact now

PRODUCT DESCRIPTION

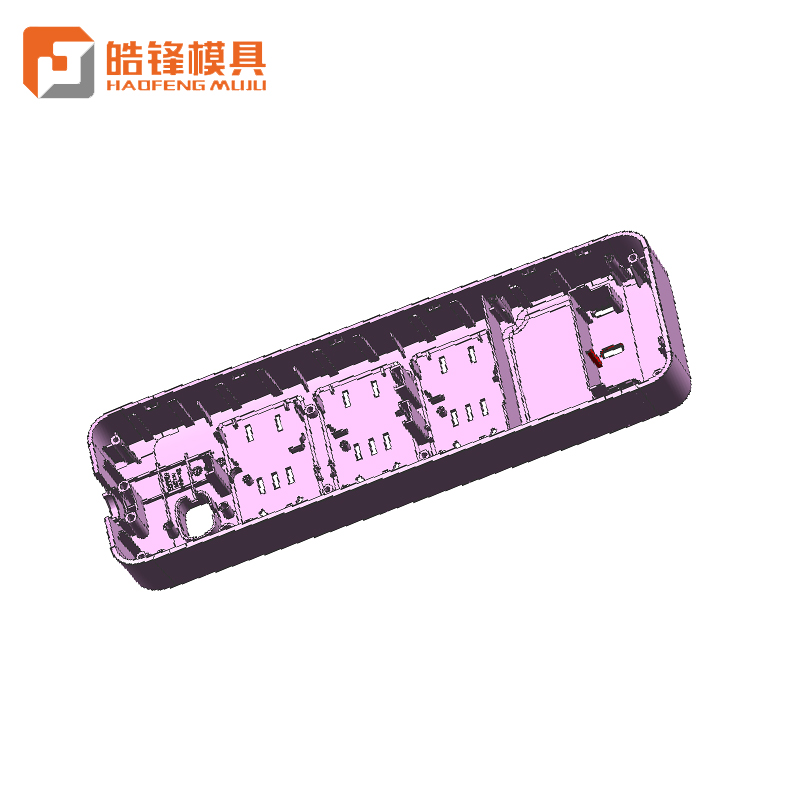

Product function:GB socket cover, and GB socket other products need to be assembled with each other.

Mould for rear vertical plate:

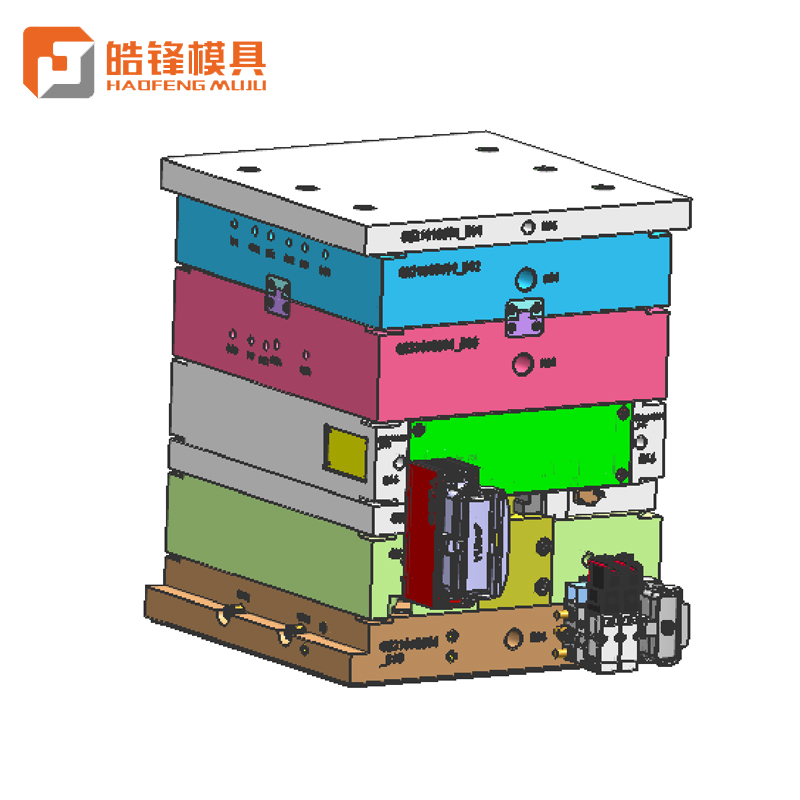

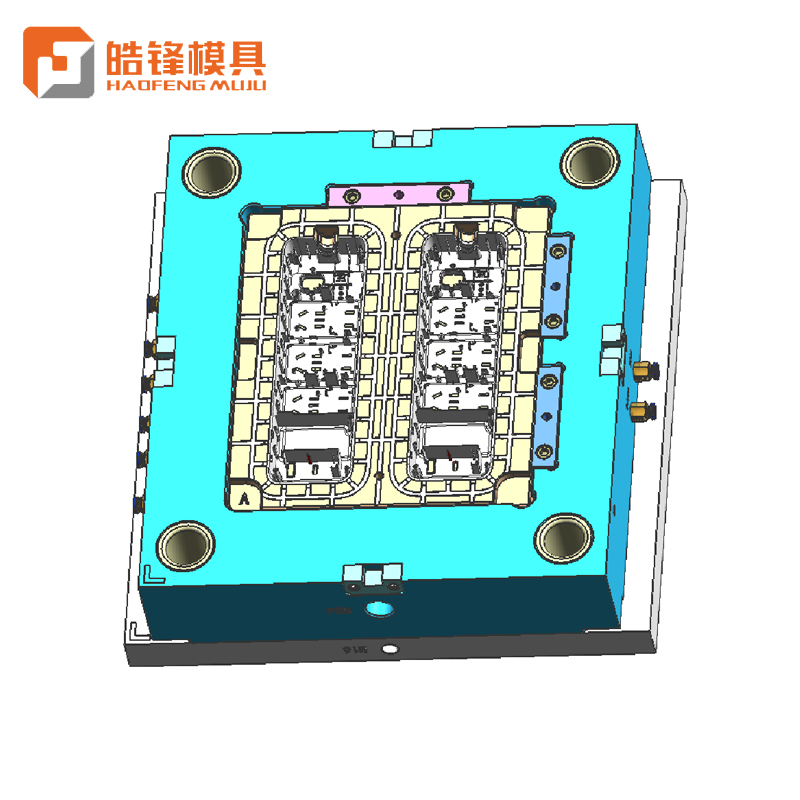

1: GB socket cover mould structure has a total of 16 inclined top, inverted hot flow needle valve into glue.

2: The average wall thickness of the product is 2.0. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause uneven parts and affect the manufacturing accuracy.

3: The average wall thickness of the reinforcing bars is 0.9. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause the top bars of the parts to be too thin and cause the product to lack glue.

4: In the mould design of the product parting surface, try to ensure the appearance quality of the product. The parting surface is set on the invisible side, so as not to affect the processing error or the flash edge of the mould production after long-term production.
