Open Heat Flow Moral French 4 - bit Wireless Lower Cover Injection Mould

Name	Open Heat Flow Moral French 4 - bit Wireless Lower Cover Mould
Material	PC(Shrinkage:0.5%)
Product Size	295.0082.0069.73㎜
Cavities Material	8402
Cold Runner/Hot Runner	Open Hot Runner Turns Into Latent Glue
Mould size	450550556㎜
Mould Weight	905㎏
Type Of Injection Molding Machine	HaiTian MA2500/1000
Production Status	Already In Production
Mould Completion Time	50Days

Contact now

PRODUCT DESCRIPTION

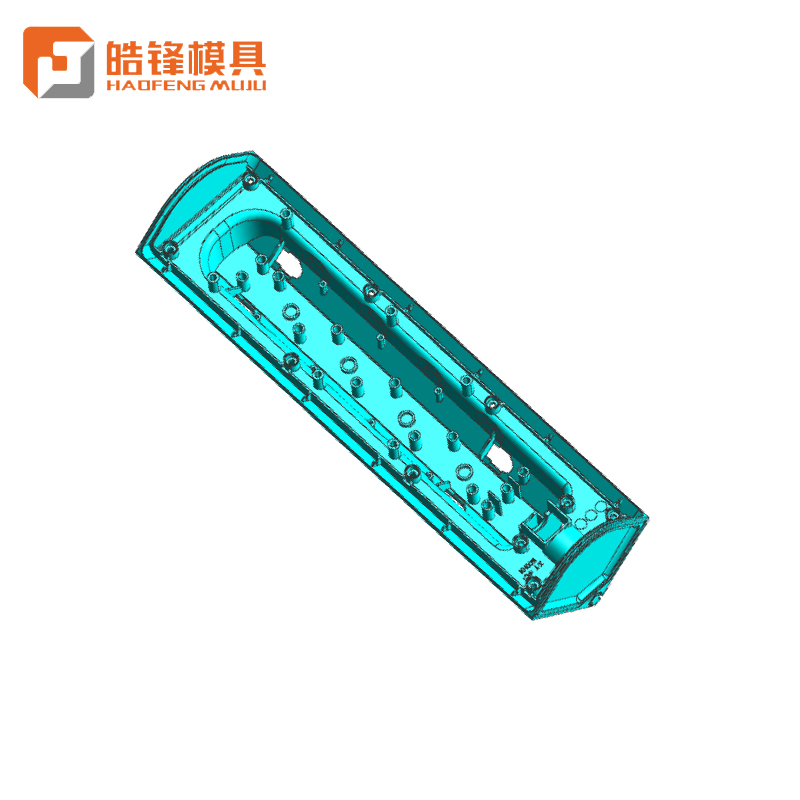

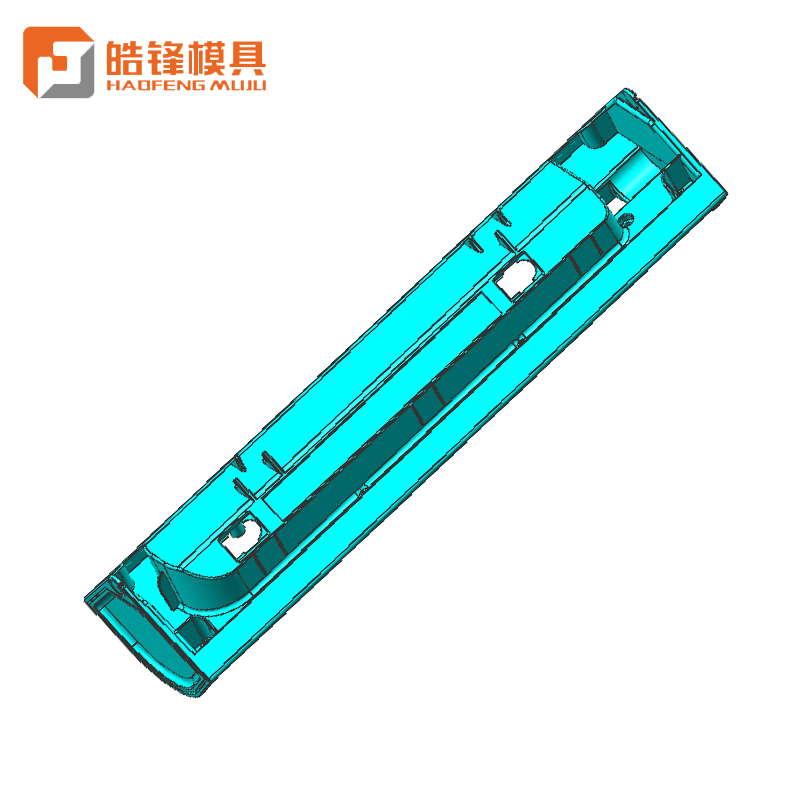

Product function:German French 4-bit wireless lower cover is the German French socket lower cover equipment components, the German French socket lower cover needs to be assembled with the upper cover and other products.

Open heat flow moral French 4 - bit wireless lower cover mould:

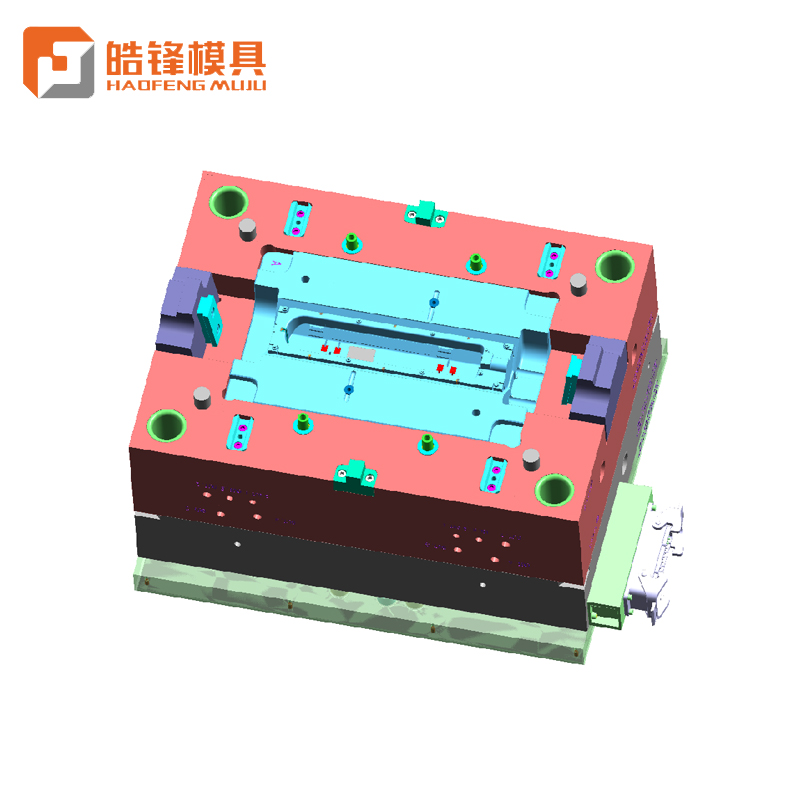

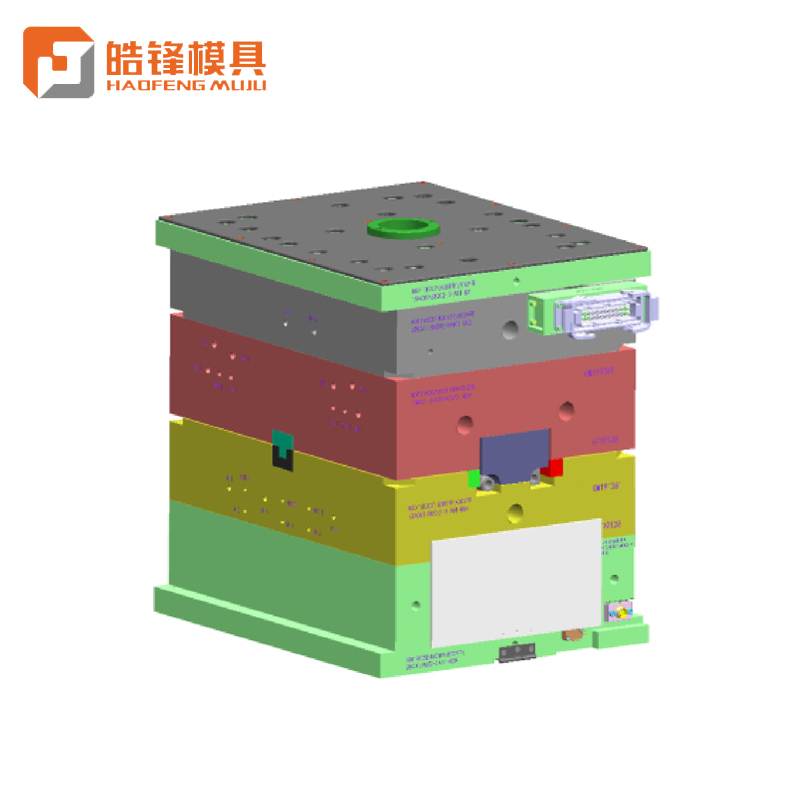

1: German and French 4-bit wireless lower cover die structure 6 products are made together, the front die inclined top, the back die world side slider, upper die inserts and slider inserts and lower die inserts need to be replaced to produce different models of products.

2: The average wall thickness of the product is 2.2mm. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause uneven parts and affect the manufacturing accuracy.

3: The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause the top bars of the parts to be too thin and cause the product to lack glue.

4: In the mould design of the product parting surface, try to ensure the appearance quality of the product. The parting surface is set on the invisible side, so as not to affect the processing error or the flash edge of the mould production after long-term production.
